Archived:

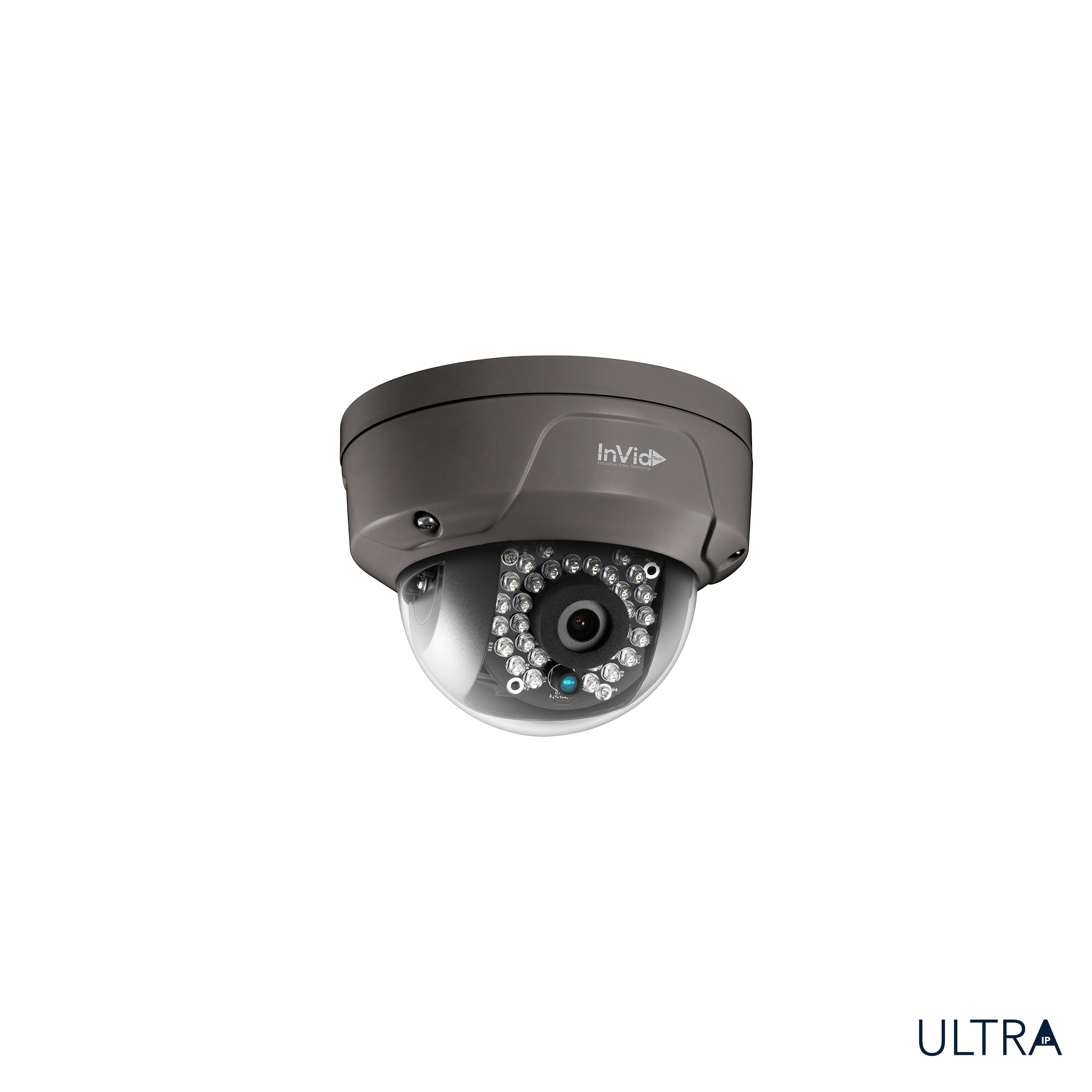

4 Megapixel IP Plug & Play, Outdoor Vandal Dome, 2.8mm, 100' IR Range, WDR, SD Card Slot, PoE/DC12V
Features
Model Number | ULT-P4DRIR |
Image Sensor | 1/2.8" progressive scan CMOS |
Min. illumination | 0.01 lux @ (F1.2, AGC ON), 0 lux with IR |
Shutter time | 1/30s ~ 1/100,000s |
Lens | 4mm @ F2.0, angle of view: 75.8° (2.8mm, 6mm, 12mm optional) |
Angle adjustment | Pan: -90° ~ 90°, tilt 0° ~ 75° |
Digital noise reduction | 3D DNR |
Wide dynamic range | True WDR 120db |
Day & night | IR cut filter with auto switch |
Video compression | H.264 / MJPEG / H.264+ |
Dual stream | Yes |
Max. image resolution | 4 MP CMOS, 2688×1520 |
Frame rate | 20fps (2688×1520), 30fps (1920×1080) |
Image settings | Saturation, brightness, contrast, sharpness adjustable through client software or web browser |
Network Storage | NAS |
BLC | Yes, zone configurable |
On Board Storage | Micro SD slot, up to 128GB |
Alarm trigger | Motion detection, tampering alarm |
Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos |
Interoperability | ONVIF, PSIA, CGI |
Security | User Authentication, reset button, flickerless, dual stream, heartbeat, mirror, watermark |
General functionalities | User authentication, watermark |
Communication interface | 1 RJ45 10M/ 100 M Ethernet interface |
Operating conditions | 14°F ~ 104°F (-10°C ~ 40°C) humidity 90% or less (non-condensing) |
Power supply | 12 VDC +/- 10%, PoE (802.3af) |
Power consumption | Max, 5W |
Ratings | IP66 / IK10 |
IR range | Up to 100ft |
Dimensions | Ø 4.4" x 3.2" (111.7 x 81.28mm) |
Weight | 1.1 lbs (500g) |
: Junction Box #2
: Wall Mount #1
: Wall Mount #3
: Pendant Mount #1
*: Pole Mount #1
*: Corner Mount #1
*To use these mounts with the selected cameras, drill the holes needed in the mount using the diagram included with the camera.
