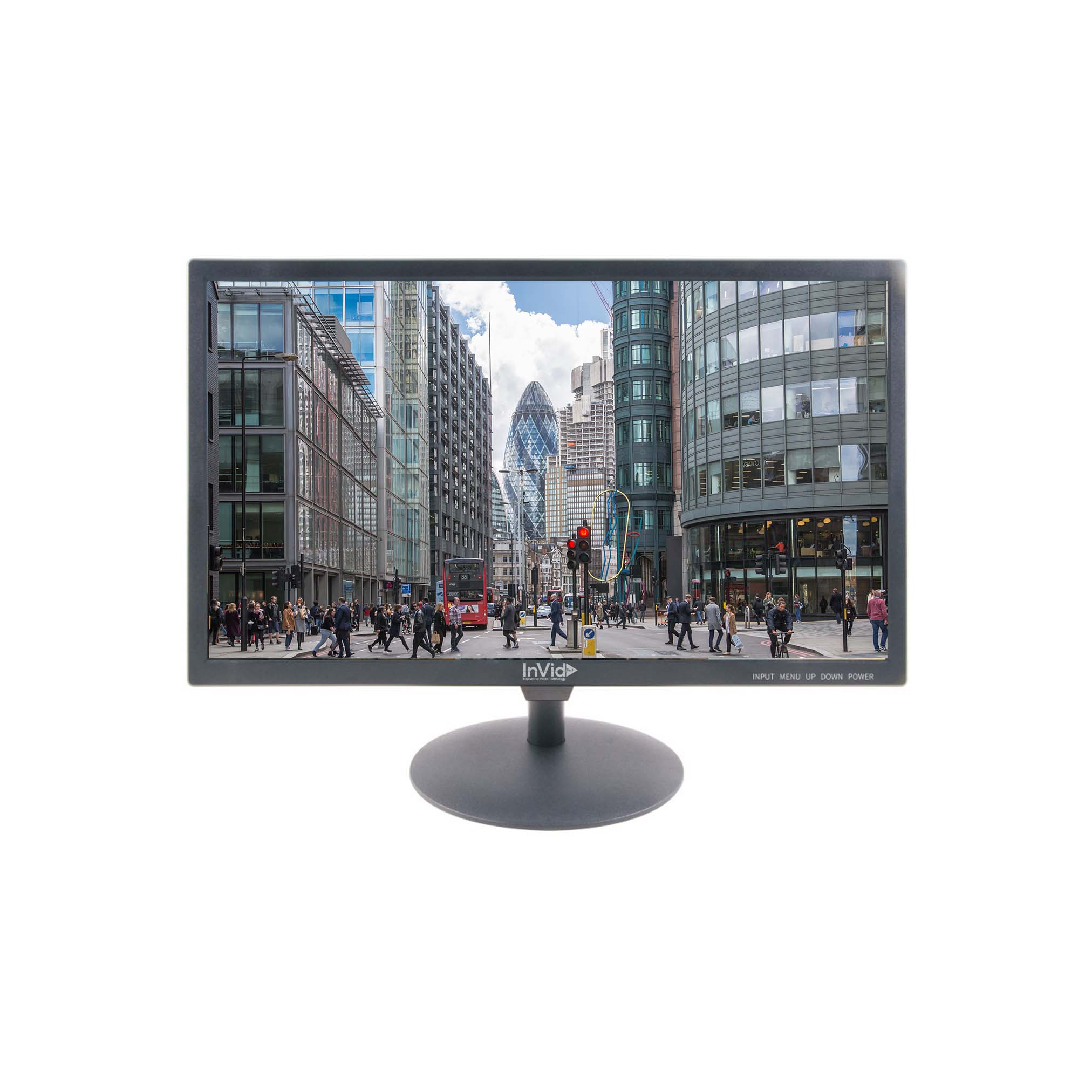

24” Full HD 1920 x 1080 LED Monitor, HDMI, VGA, BNC HD Inputs (TVI/AHD/CVI) BNC Loop Out, Built for 24/7 Performance
Features
Model | IMHD-24HDLOOP |
Screen Size | 24'’ |
Active Display Area (mm) | 521.28mm(W)×293.22mm(H) |
Display Mode | 16:9 |
LED Type | TFT-LED |
Resolution | 1920 × 1080 |
Display Color | 16.7M |
Pixel Pitch (mm) | 0.248(H)×0.248(V) |
Brightness (nits) | 350cd/m2 |
Contrast Ratio | 1000:1 |
Viewing Angle | 178(H) /178(V) |
Response Time | 5ms |
Backlight | LED |
Speakers | 8 Ω 2 Watt/channel |
Input & Output | |
HDMI 2.0 | 1 |
VGA | 1 |
BNC Output | 1 |
BNC Output Cascading | HD Analog, 2 Monitors Max |
CVBS, 3 Monitors Max | |
BNC Input | 1 |
TVI/CVI/AHD/CVBS Resolution | TVI: 8MP/5MP/4MP/2MP up to 300m AHD: 8MP/5MP/4MP/2MP up to 500m CVI: 4MP/2MP up to 500m |
Video | |
Color System | PAL/NTSC/SECAM |
OSD Control | Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language |
3D comb filter | Yes |
Video Noise Reduction | Yes |
Power & Mount way | |
Power | AC100 ~ 240V, 50/60Hz |
Working Temperature | -22°F ~ 185°F (-30°C ~ 85°C ) |
Power Consumption | 25W |
Net Weight | 6.6 lbs (3kg) |
Gross Weight | 8.8 lbs (4kg) |
Menu | Chinese/English(other languages supported) |
Mounting | Stand mount, VESA mount 100x100 |
MTBF | 50000Hours |
Base/Stand included | Yes |
Certifications | CE , FCC and UL certificates |
Dimension size | 21.9 x 13.5 x 1.9 in (555*343*49mm) |
Accessories | |
Included Accessories | Industrial PSU,Screw, Cable holder, Quick start guide |
IMHD-24HDLOOP: 24” HDMI Monitor
