Camera

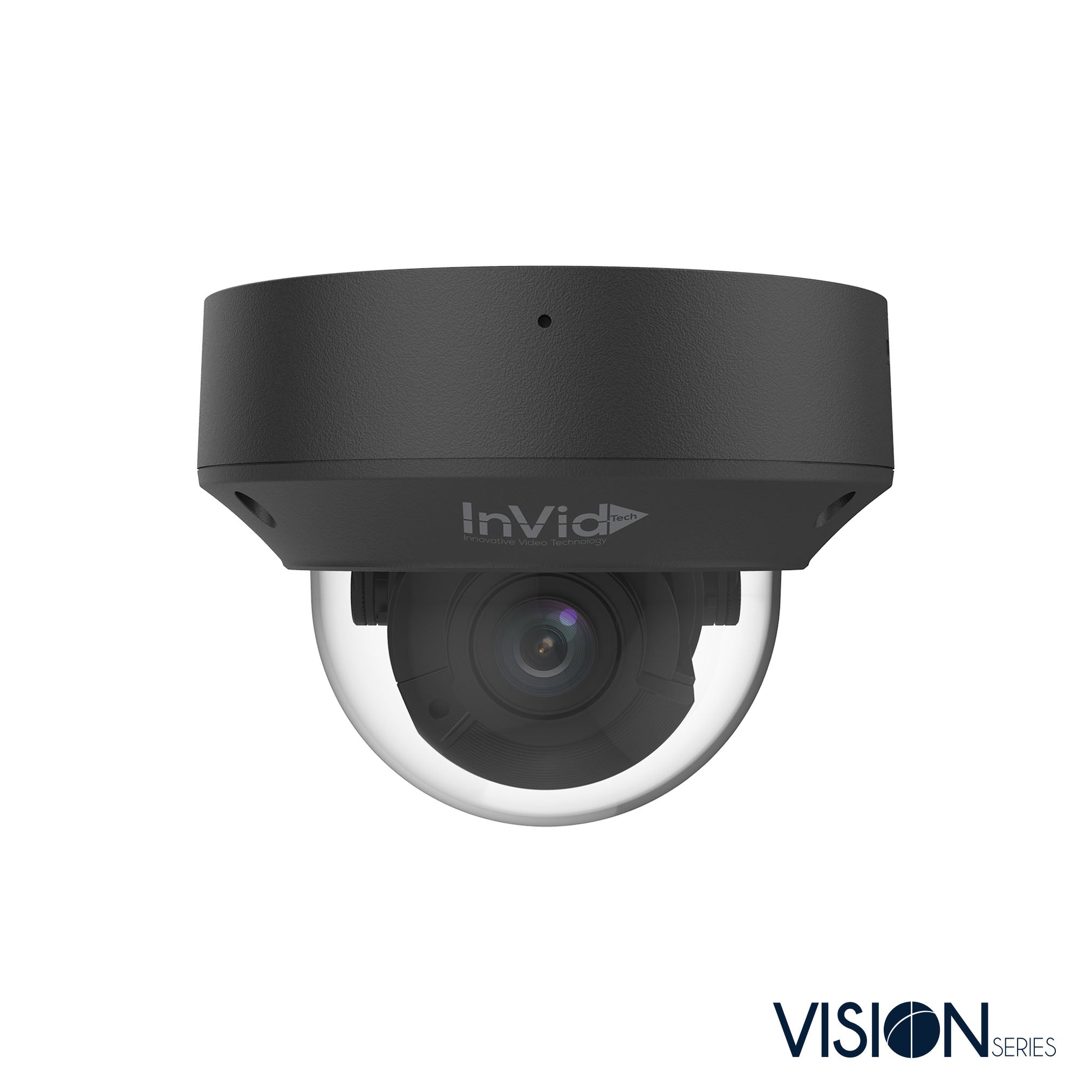

VIS-P8DRXIRA2812NH

Sensor

1/2.8”, 8.0 megapixel, progressive scan, CMOS

Min. Illumination

Colour: 0.0025 lux (F1.6, AGC ON) 0 lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

WDR

120 dB

Adjustment Angle

Pan: 0° ~ 355°, Tilt: 0° ~ 80°, Rotate: 0° ~ 355°

S/N

>56dB

Lens

Lens

2.8 ~ 12mm, AF automatic focusing and motorized zoom lens

Iris

Fixed

Field of View (H)

107.4°~ 29.2°

Field of View (V)

54.2°~ 16.3°

Field of View (D)

111.0°~33.1°

DORI

DORI Distance

Lens (mm)        Detect (ft)         Observe (ft)     Recognize (ft)    Identify (ft)

2.8                    285.1 (86.9m)   114.2 (34.8m)   57.1 (17.4m)         28.5 (8.7m)

12                     1121.8 (372.4m) 488.8 (149m)    244.4 (74.5m)   112 (37.2m)

Illuminator

IR Range

Up to 131ft  (40m) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

H.264 code profile

Baseline profile, Main profile, High profile

Video Compression

Ultra 265, H.265, H.264, MJPEG

Video Bit Rate

128 Kbps~16 Mbps

U-code

Support

Frame Rate

Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440),

Max 30fps; 1080P (1920*1080), Max 30fps;

Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max

30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Video Stream

Triple streams


White Balance

Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2

Digital Noise Reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

Support

HLC

Support

BLC

Support

Defog

Digital Defog

Intelligent

Smart Intrusion Prevention

Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection

Statistical Analysis

People counting, support people flow counting and crowd density monitoring

Events

Basic Detection

Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection

General Function

Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication

Audio

Audio Compression

G.711U, G.711A

Audio Bitrate

64 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8 kHz

Storage

Edge Storage

Micro SD, up to 512 GB

Network Storage

ANR, NAS (NFS)

Network

Protocols

IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API,SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

InVid Vision (Mobile App), Vision Tools (IP Utility), InVid CMS

Web Browser

Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/O

1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]

Alarm I/O

1/1

Serial Port

N/A

Built-in Mic

Support

Built-in Speaker

N/A

WIFI

N/A

Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

N/A

Certifications

EMC

CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety

CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529) IK10 (IEC 62262)

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power Consumption

Max 9.0W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø5.8” x 4.4”  (Φ148 x 111.4mm)

Weight

2.14lb  (0.97kg)

Working Environment

-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)

Surge Protection

6KV

Reset Button

Supported

Material

Metal

Web Client Language

20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
