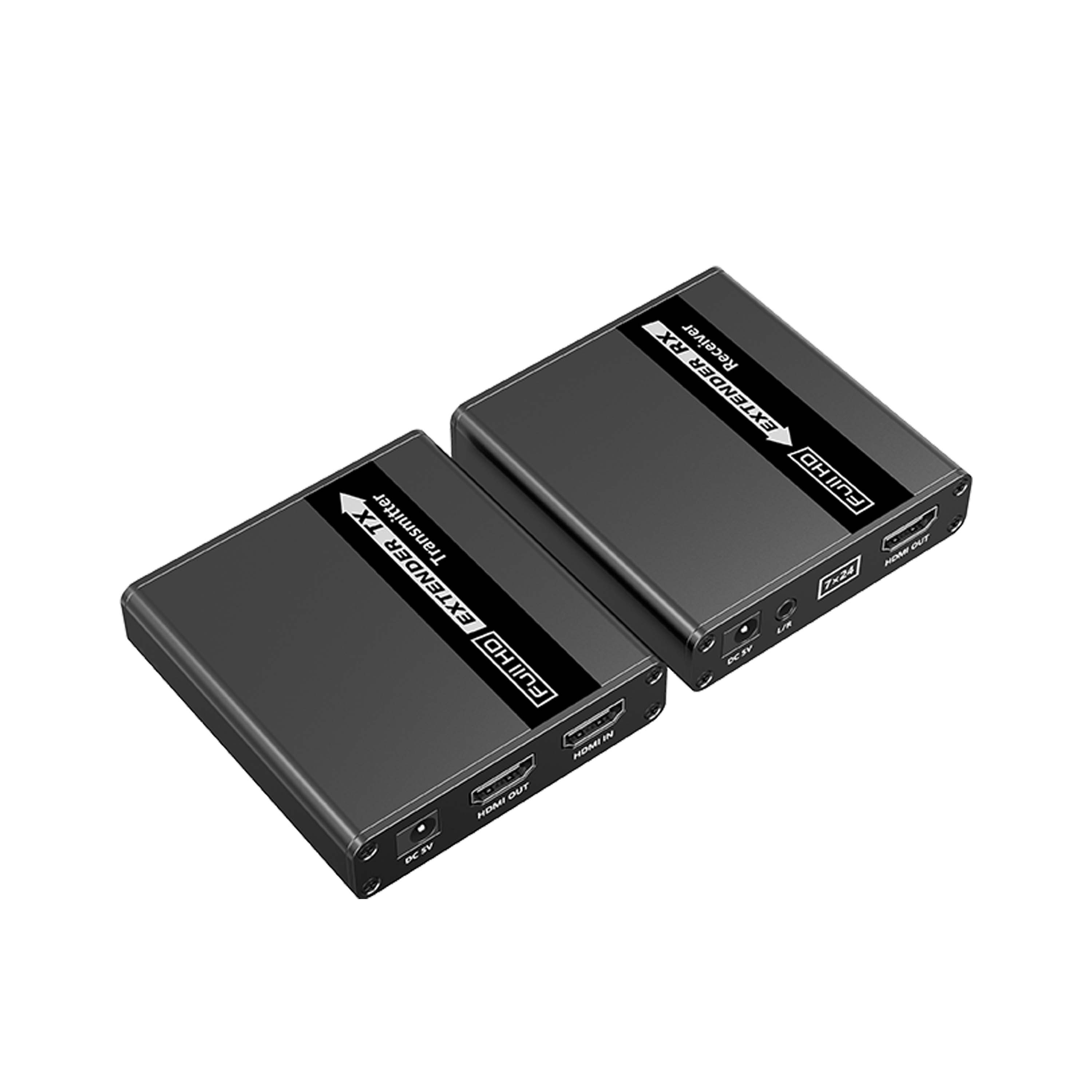

230 Feet (70m) 1080P@60Hz HDR10 YUV 4:4:4 HDMI Extender over CAT6/6A/7 with IR, HDMI loop-out, EDID management, point to point
Power Supply | |
Voltage/ Current | DC5V/1A |
Power consumption | TX <2.5W RX < 2.5W |
HDMI Performance & Interface | |
HDMI Compliance | HDMI1.3 |
HDCP Compliance | HDCP1.4 |
HDMI Resolution | 800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz |
HDMI Distance | 1080p: 25 Foot Maximum Distance |
HDMI Performance & Interface | |
Supports Audio Formats | PCM/LPCM/DTS-HD/DTS-Audio |
Input & Output TMDS Signal | 0.7~1.2Vp-p (TMDS) |
Input & Output DDC Signal | 5Vp-p(TTL) |
Input Cable Length | ≤8m (AWG24) |
Output Cable Length | ≤8m (AWG24) |
Transmission Distance | |
Cat6/6A/7 | ≤70m |
Protection Level | |
Electrostatic Protection of the Whole Machine | Implementation of the standard: IEC61000-4-2 1a Contact discharge level 4 (8KV) 1b Air discharge level 4 (15KV) |
Operating Environment | |
Working temperature | -4°F ~140°F(-20°C ~60°C) |
Storage temperature | -4°F ~140°F (-30°C ~70°C) |
Humidity (no condensation) | 0~90% |
Body Properties | |
Dimension (L x W x H) | 3 x 3.15 x .71 in (75 x 80 x 18 mm) |
Material | Aluminium alloy material+crystal panel |
Treatment Process | Grit blast |
Color | Black |
Weight | TX: .35lb (160g) RX: .35lb (160g) |
INV-AV2294KEX: HDMI Extender
